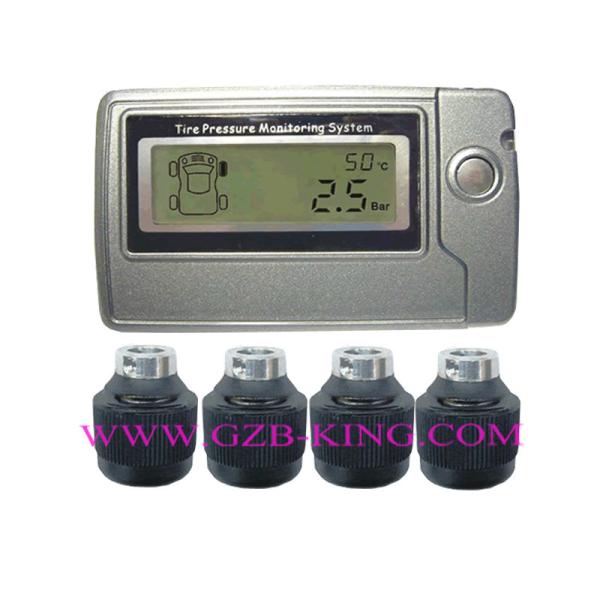

Item Name: Tire Pressure Monitor System

Model: BK-DQ104

Functions:
◆ Automatic monitoring tire pressure
◆ Detect the relative temperature of tires
◆ Abnormal pressure alarming
◆ can set alarm value of High pressure/low pressure/high temperature.
◆ No matter in the course of driving or in the stationary state, all can real-time detection tire pressure
◆ External Sensor
◆ Tire inflation without dismantling the sensor
◆ Sensor DIY installation
◆ Display power supply: lithium batteries or car cigarette lighter .

Specifications
　　Display
　　　Operating frequency:433.92MHz
　　　Operating Voltage:3.7V DC
Charging voltage:5V DC
　　　Operating current:<10mA
　　　Operating temperature: -20~85℃
　　　Dimension:94x56x19mm

　　Sensor
　　　Operating frequency:433.92MHz
　　　Operating Voltage:3V DC
　　　Operating current:<3mA
　　　Operating temperature:-40~125℃
　　　Output power:<-20dBm
　　　Pressure range:0~13Bar
　　　Dimension:Ф23x24mm
　　　Weight:<16g

Application:
◆ car, small truck, small bus.
◆ radial tire(vacuum tire),slanting rubber tire(TUBETYPE TIRE)

Guangzhou B-KING Auto Electronics Co., Ltd focuses on manufacturing and exporting auto electronics. Such as parking sensor; rear view system(reverse Camera, rear-view monitor), auto lighting (LED bulb, HID xenon kits), high technology car security (system GPS vehicle tracker, GSM+GPS car alarm) and other auto accessories.

B-King has been in these business lines for more than 6 years and established long business relationship with regular customers from Asia, America, Europe, Middle-east, Africa and other regions.

We aim at providing every customer with the best quality+ best service + most competitive price.

Select B-KING, share your future!
