GSM+GPS CAR ALARM SYSTRM FREQUENCY:850/900 /1800 /1900MHz

MODEL: 116V

Main Functions:
1.GPS and GSM dual tracking.
2.Support GSM SMS/GPRS/GPS
3.Real time tracking at preset time interval.
4.Support Google Earth and Google Map.
5.Web-based tracking software.
6.Programmed Google Link in the firmware enables mobile phone tracking.
7.SMS operations in settings and queries.
8.Stop car by SMS operation.
9.Central locking
10.Voice Menu(English, Spanish, Portuguese, Thai)
11.Route-points report.
12.GEO fence.
13.Alarm function:
*SOS Alert
*Over-speed Alert
*Move Alert
*Engine on Alert
*Circuit-Cut-off Alert
*Door open Alert
*Shake alert

Technical Specification:
1.GSM Work Frequency:850/900 /1800 /1900MHz
2.Temperature: Working Temp -20℃ ~ +60℃
3.Humidity: 20%—95%
4.GPS chipset: GPS(SiRFstarIII chipset) : Frequency:L1, 1575.42 MHz. , Minimum signal tracked: -159dBm
5.Remote control: Frequency: 433MHz. Code: 1527/2240 study code, Working Voltage: 12V (27A 12V dry battery) , Control Distance: 20-100M
6.GSM Antenna
* Cable type: Gain: 3dBi cable-length: 3-5meters connector: SMA
* Portable antenna: Gain: 2dBi height: 5cm connector: SMA
7.GPS Antenna - Voltage:3V cable-length: 3-5 meters connector: SMA
8.Stop relay: 12V/24V 40A
9.Mainframe Power supply: 12/24V DC
10.Backup battery: Poly-Li battery, 600mAh 3.7V
11.Mainframe Dimension: 125 x108 x 26 mm

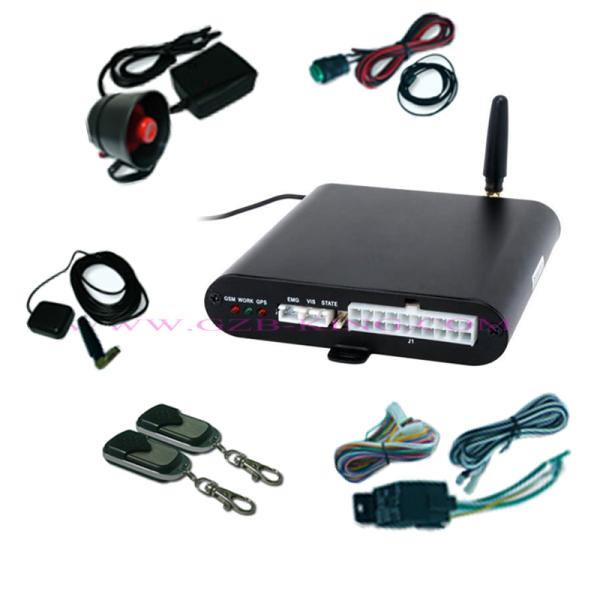

Accessories:
1.Main terminal
2.GSM antenna
3.GPS antenna
4.Remote controls
5.Vibration sensor
6.20-pin connect wires
7.Microphone
8.LED status indicate light
9.Stop Relay
10.SOS button
11.Siren

Package:
MEAS: 36.5*25.5*47.5cm
Weight: G.W.:1.45Kg/set (including accessories)　
10pcs/Carton
N.W: 14kgs
G.W.:15kgs

Guangzhou B-KING Auto Electronics Co., Ltd focuses on manufacturing and exporting auto electronics. Such as parking sensor; rear view system(reverse Camera, rear-view monitor), auto lighting (LED bulb, HID xenon kits), high technology car security (system GPS vehicle tracker, GSM+GPS car alarm) and other auto accessories.

B-King has been in these business lines for more than 6 years and established long business relationship with regular customers from Asia, America, Europe, Middle-east, Africa and other regions.

We aim at providing every customer with the best quality+ best service + most competitive price.

Select B-KING, share your future!
